CPU
|
Four core Cortex-A55@1.9GHz
|
|
|
Basic parameter |
GPU
|
Mali-G31-2EE •OpenGL ES 1.1, 2.0, 3.2、Vulkan 1.0,1.1、OpenCL 2.0
|
|
VPUharddecoding
|
H.265、VP9 ：up to 8Kp24 •AVS2 ：up to 4K@60fps • H.2634：up to 4K@30fps
|
|
|
VPU is hard coded
|
H.264/AVC、H.265/HEVC ：up to 1920×1080@60fps
|
|
|
RAM
|
2GB/4GB/8GB LPDDR4 (Standard 2GB)
|
|
|
ROM
|
16GB eMMC
|
|
|
Operating voltage
|
DC 5V
|
|
|
Operating temperature
|
Business version: 0℃ ~ 70℃
|
|
|
Interface mode
|
Stamp hole (45*4pin, pin spacing 0.254mm, closing height 2mm)
|
|
|
Functional parameter |
Display |
With two display interfaces, support single 6/8LVDS, dual 6/8LVDS, 8LAN V-by-one interface.
|
| • LVDS: Dual channel output, support single 6/8LVDS, double 6/8LVDS, j resolution up to 1920*1080; | ||
| • V-by-one: 8 lan V-by-one, supports 1, 2, 4 zones, resolution up to 4Kx2K 60Hz | ||
|
HDMI IN
|
HDMI 2.1 Dynamic HDR reception supports HDCP 1.4/2.2/2.3 and supports maximum resolution 4Kx2K@60 signal input
|
|
|
Audio
|
3* 8ch I2S/TDM/PCM, 1*SPDIF built-in EQ/DRC
|
|
|
SDIO
|
SDIO 3.0: Data throughput up to 104MB/S.
|
|
|
Ethernet
|
One GMAC, one EMAC provides the RGMII/RMII interface
|
|
|
USB 2.0
|
One USB 2.0 Host and one USB 2.0 OTG are used for the 2.0 channel in USB 3.0. When USB 3.0 is not used, it can be used as two
|
|
| independent USB 2.0 devices | ||
|
USB 3.0
|
One USB 3.0 Host
|
|
|
UART
|
Maximum speed 4Mbps
|
|
|
SPI
|
Supports master/slave mode and can be configured by software
|
|
|
I2C
|
Supports the 7bits and 10bits address modes, and the maximum rate is 1Mbit/s.
|
|
|
System
|
Operating system
|
Android 9.0 •SD card • USB OTG
|

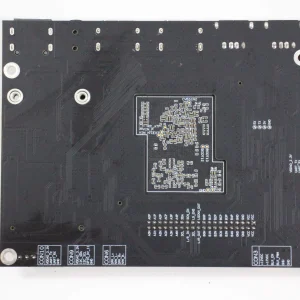

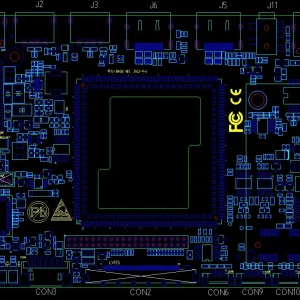

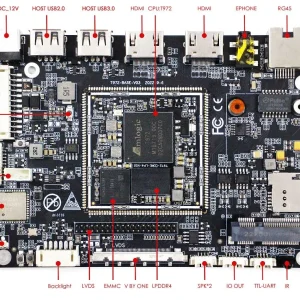

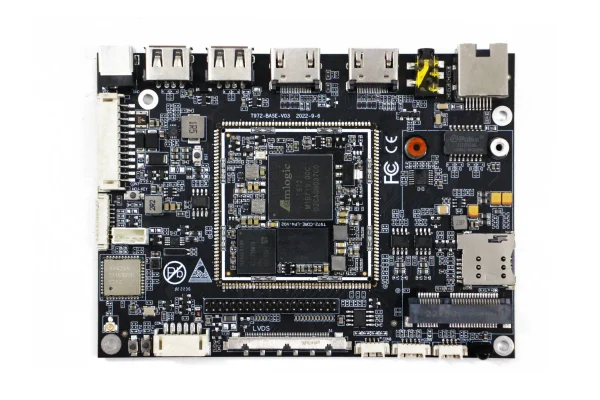

T972 motherboard is suitable for smart TV, digital marking card, commercial display large screen advertising machine, educational electronic whiteboard
