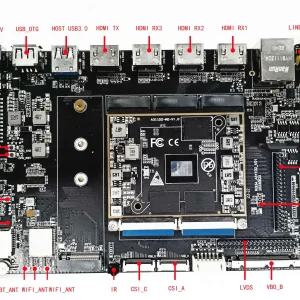

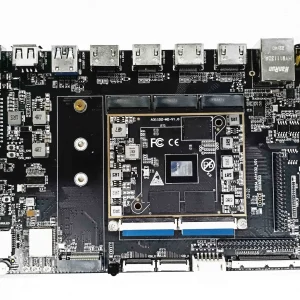

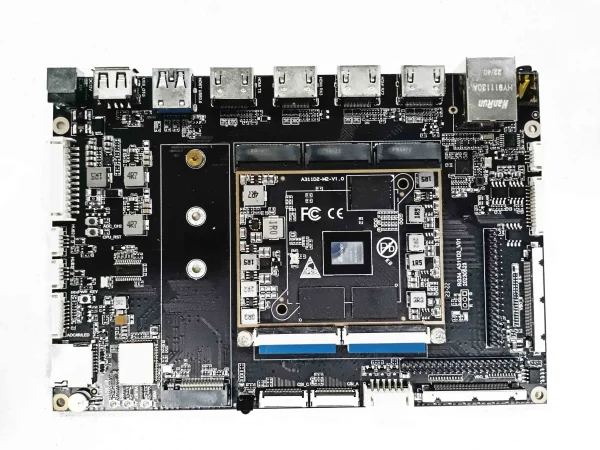

| major parameters | CPU | 4 Cortex-A73 @ 2.2GHz 2 Cortex-A53 @ 1.8GHz 4 Cortex-A73 @ 2.2GHz， 4 Cortex-A53 @ 2.0GHz |
| GPU | Arm Mali-G52 MP8(8EE) | |
| memory | 4GB 64-bit LPDDR4/X@2133MHZ | |
| storage | EMMC | |
| External storage | TF CARD | |
| System | Android 11 /12 ,Ubuntu Debian | |
| communication interface | USB2.0 | OTG*1 |
| USB2.0 | HOST*2 | |
| USB3.0 | HOST*1 | |
| network interface | 10/100/1000M Ethernet interface | |
| Wifi | 2.4GHz/5GHz+5.0BT IEEE 802.11ac/a/b/g/n 2T2R Wi-Fi Module | |
| UART | 1 x debug/debugging interface | |
| video display | Camera module | 2 x MIPI camera interfaces |
| HDMI | 1 x HDMI OUT (output) 3 x HDMI IN (inputs) |
|
| power interface | power supply | DC 12V 2A adapter power supply |
| other | V BY ONE | 2 x VBO display interfaces |
| LVDS | 2 x LVDS display interfaces | |
| LINE OUT | Headphone/speaker interface | |
| ADC/IR/LED | Buttons, remote control, indicator lights | |
| SPK speaker | 2 x 3W speaker amplifier output | |
| TF card | TF card interface | |
| IR | Infrared receiver | |
| POWER KEY | Motherboard power button |
Mainly for smart large-screen application development, the enhanced version of smart TV products, to meet more industry customization needs, processing performance is higher than smart TV, open SDK, facilitate industry customers to customize and modify according to demand, using the core to strengthen the product form of the base plate can effectively reduce the technical threshold, the core part of the system has been completed. Customers can customize the interface to expand the baseplate according to their own needs, and speed up the project landing speed.
