Main Specifications |
CPU
|
Quad-core Cortex-A55
|
|
GPU
|
Mali-G52 GPU
|
|
|
Memory
|
LPDDR4 2G/4G
|
|
|
Storage
|
EMMC 8/16/32/64G
|
|
|
External Storage
|
TF Card
|
|
|
Operating System
|
Supports Android 11/12, Ubuntu, Debian, Yocto Linux+QT, and other operating systems
|
|
|

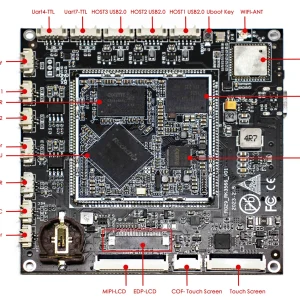

Communication Interfaces |
USB2.0
|
HOST2.0*3 Type C OTG 1
|
|
Wireless Network
|
Supports 2.4G/5G WIFI5 standard protocols
|
|
|
UART
|
TTL232 serial port*2
|
|
|
Display Interfaces |
EDP LCD
|
EDP LCD Supports a maximum resolution of 2560*1440
|
|
MIPI LCD
|
MIPI LCD Supports a maximum resolution of 2560*1440
|
|
|
Touch Screen
|
Supports COF and COB touch screen input interfaces
|
|
|
Power Interfaces
|
Power
|
DC12V 2A adapter power
|
|
Other Interfaces |
Upgrade
|
System upgrade, system recovery, data backup, firmware update, recovery button
|
|
Reset
|
Reset button
|
|
|
Microphone
|
MIC
|
|
|
RTC-Power
|
Clock battery power
|
|
|
Human Sensor
|
Motion sensor
|
|
|
Speaker
|
Left channel, right channel
|
|
|
IR
|
Infrared receiver
|
