Basic parameter |
SOC
|
RockChip RK3566
|
|
CPU
|
Quad-core 64-bit Cortex-A55 processor, 22nm advanced technology, main frequency up to 1.8GHz
|
|
|
GPU
|
ARM G52 2EE graphics processor, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high performance 2D acceleration hardware
|
|
|
NPU
|
Integrated RKNN NPU AI accelerator, 0.8Tops@INT8 performance Support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture model is a key transformation
|
|
|
Codec
|
4K 60fps H.265/H.264/VP9 video decoding1080P 100fps H.265/H.264 video encoding
|
|
|
Storage
|
8GB/16GB/32GB/64GB/128GB eMMC Built-in storage
|
|
|
Hardware parameter |
Ethernet
|
Integrated GMAC Ethernet controller, 1000Mbps Ethernet (RJ45)
|
|
Wireless network |
Expandable WiFi+ Bluetooth two-in-one module via SDIO interface:
|
|
| – Supports 2.4GHz / 5GHz dual-band WiFi and 802.11a/b/g/n/ac protocol | ||
| – Bluetooth5.0 is supported | ||
| Supports expansion of 4G LTE/3G wireless networks | ||
|
Display
|
1 x HDMI2.0, the maximum support for 4K@60Hz output
|
|
| 2 × MIPI DSI, support single and dual channel mode, the maximum support for 2560*1440@60fps output 1 × eDP1.3, the maximum support | ||
| for 2560×1600@60fps output | ||
|
Audio
|
1 x I2S (8-channel I/O), 2 x I2S (2-channel I/O), 1 x I2S (HDMI audio)
|
|
|
Camera
|
MIPI-CSI (4 channels), can support up to 2 input, built-in 8M ISP image signal processor supports monocular 800W or binocular 200W camera
|
|
|
USB
|
USB2.0×5、USB3.0×1
|
|
|
PCIe
|
Support for PCIe 2.1
|
|
|
SATA
|
SATA3.0 is supported
|
|
|
Other interface
|
UART×10、 I2C×6、ADC×4、 PWM×15、GPIO×118、 I2S×4、 SPEAK×1,HPOUT×1
|
|
|
System software
|
System
|
Support Android, Ubuntu, Buildroot+QT, OpenWRT, Debian and other operating systems
|
|
Other parameters |
Interface type
|
Stamp hole (160PIN standard interface, 1.0mm spacing)
|
|

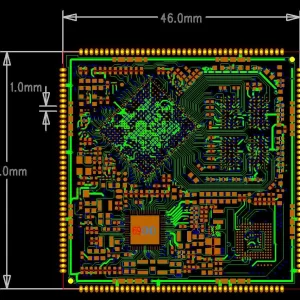

Dimension
|
46mm × 46mm
|
|
|
Heat dissipation
|
Heat sink mounting hole spacing: 14.5*14.5*5
|
|
|
Power consumption
|
Standby power consumption: 0.075W Typical power consumption: 2.8W Maximum power consumption: 4.6W
|
|
|
Environment
|
Operating temperature: -20℃ -60 ℃ Storage temperature: -20℃ -70 ℃ Storage humidity: 10% to 80%
|
