| Input signal | HDMI signal | Supports modes 480p, 720p, and 1080p |
| HDMI 1.4b | ||
| HDCP 1.4/2.2 | ||
| Output display interface | LVDS&MIPI | Output interface double 8LVDS, single 8LVDS and MIPI interface |
| Output data formats RGB888 | ||
| resolution 800*1280 1920*1200 1920*1080 | ||
| Audio amplifier | Amplifier type | Class D |
| Load impedance | 4Ω | |
| Power | 2x3W | |
| Crosstalk | -95db | |
| Power supply | Input voltage | 8-20V |
| Ooperating power consumption | 2W | |
| Standby power consumption | 0.4W | |
| Screen voltage | 3.3V | |
| Power operation | operating mode、standby mode | |
| TP | USB-TP | Supports USB capacitive touch interface |
| Other | OSD language | Simplified Chinese、English |
| OSD function | Supports DDC/CI protocol for automatic adjustment, color adjustment |

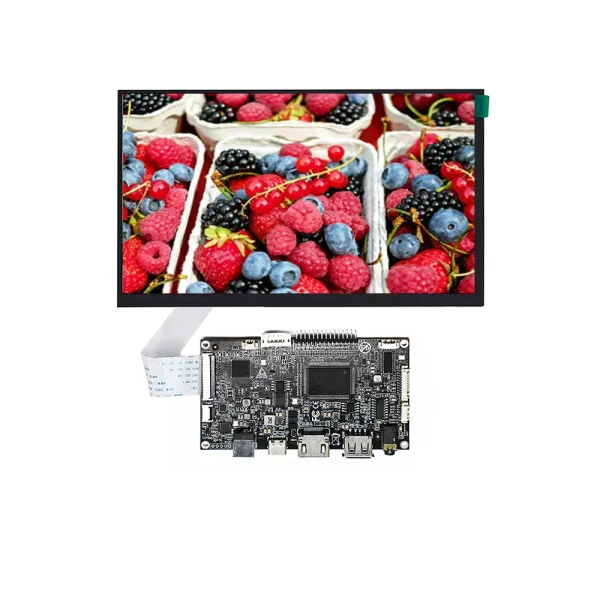

Suitable for Raspberry Pi development board and industrial control displays, supports external USB devices such as USB drive, mouse, keyboard, USB capacitive touch screen, I2C touch screen. Supports multiple screen sizes, resolutions, and interfaces. It supports RT14 interface, MIPI interface for 7 inch 600*1024, 10.1 inch 800*1280, 1920*1200, and LVDS interface for 21.5 inch 1920*1080
